Specifically designed for the Lenovo Lenovo ThinkPad A485

This genuine replacement screen is fully compatible with your Lenovo Lenovo ThinkPad A485 laptop. Certified refurbished to OEM specifications with our comprehensive 1-year warranty.

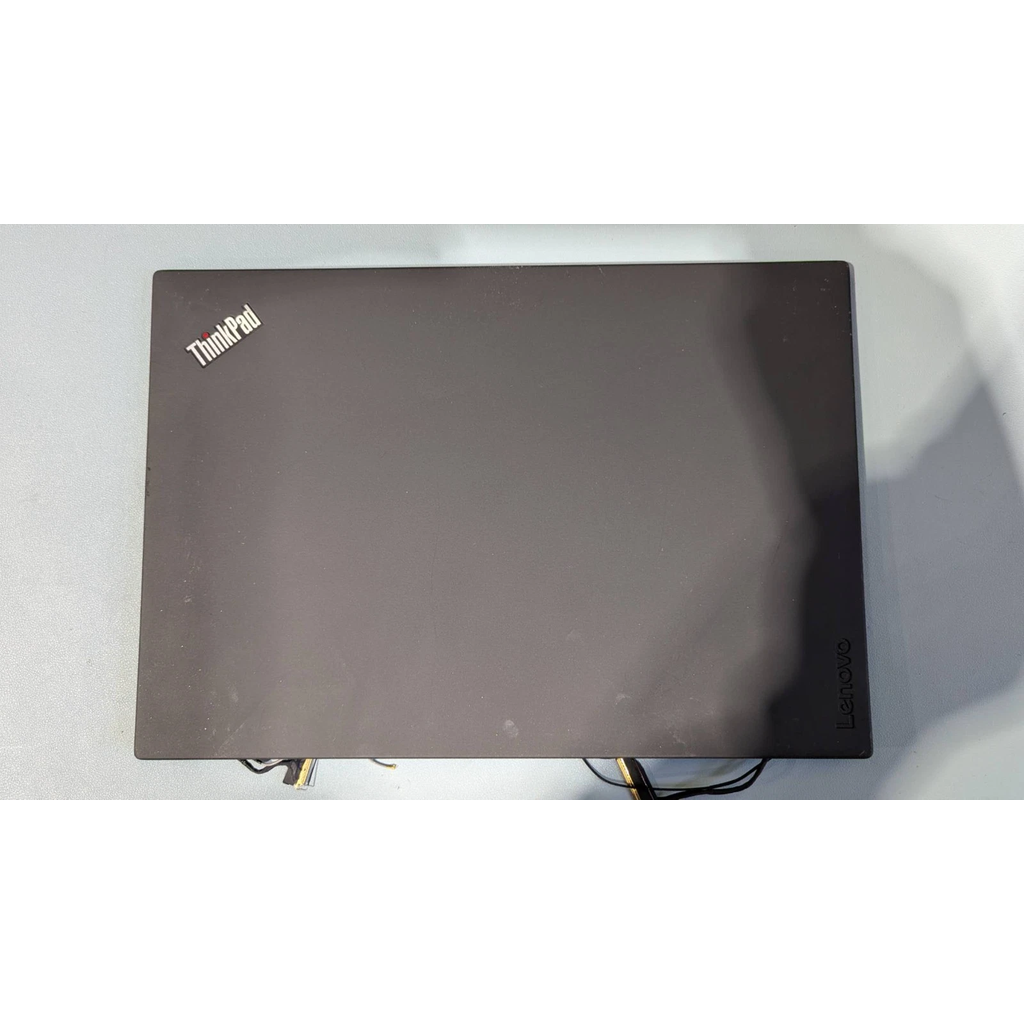

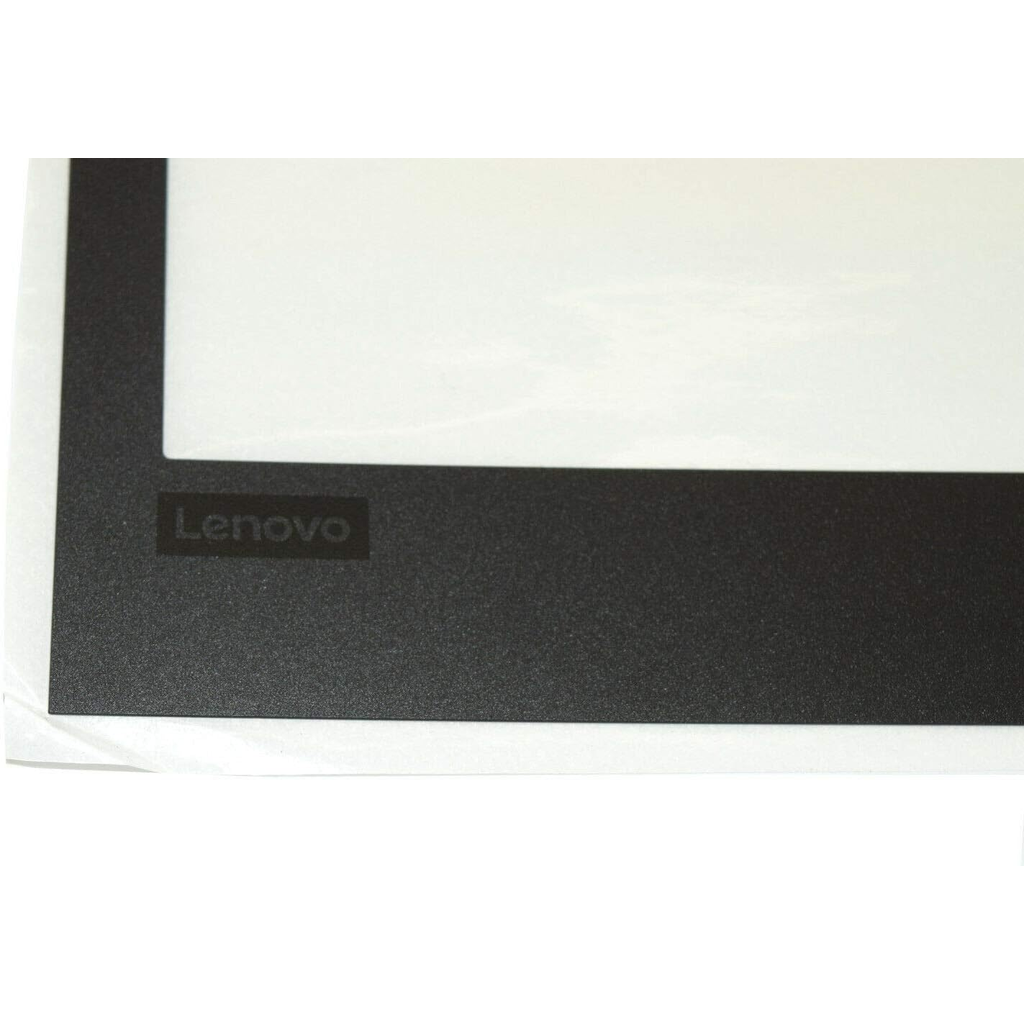

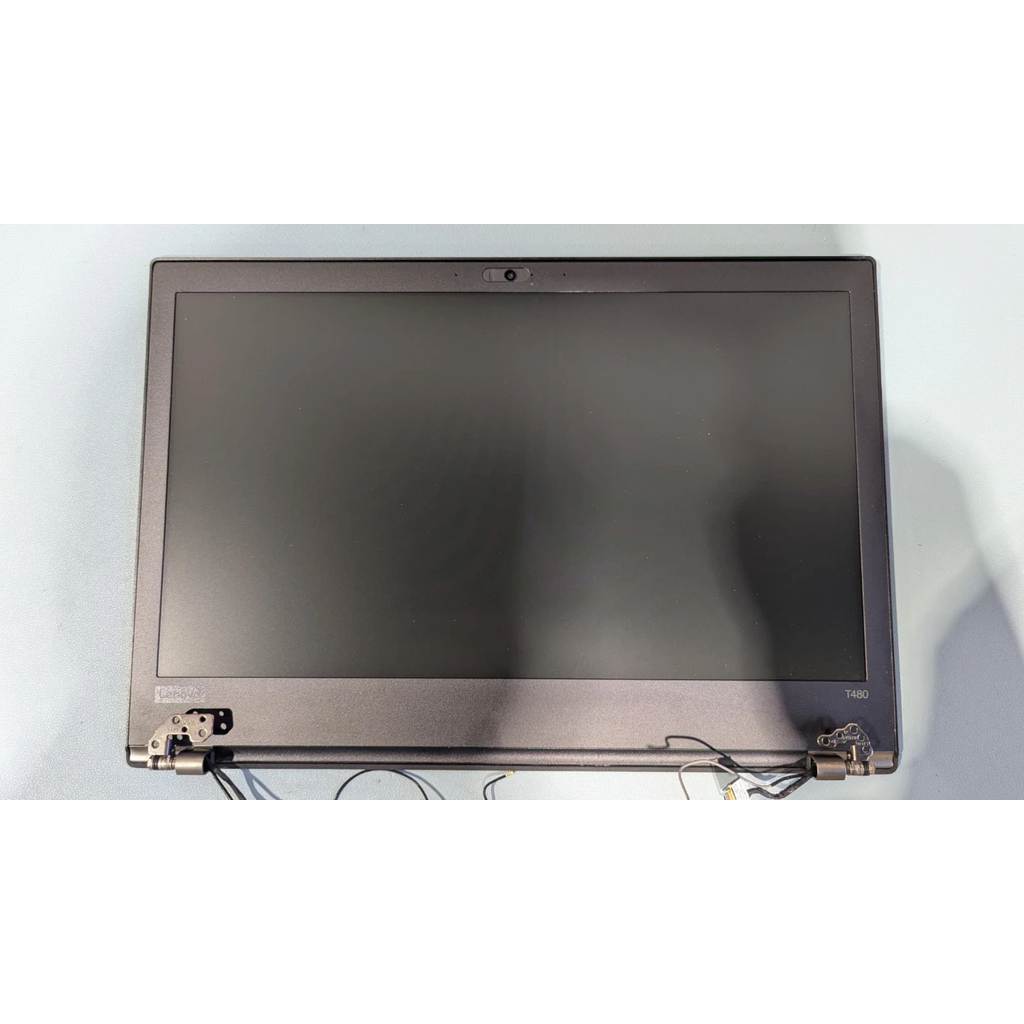

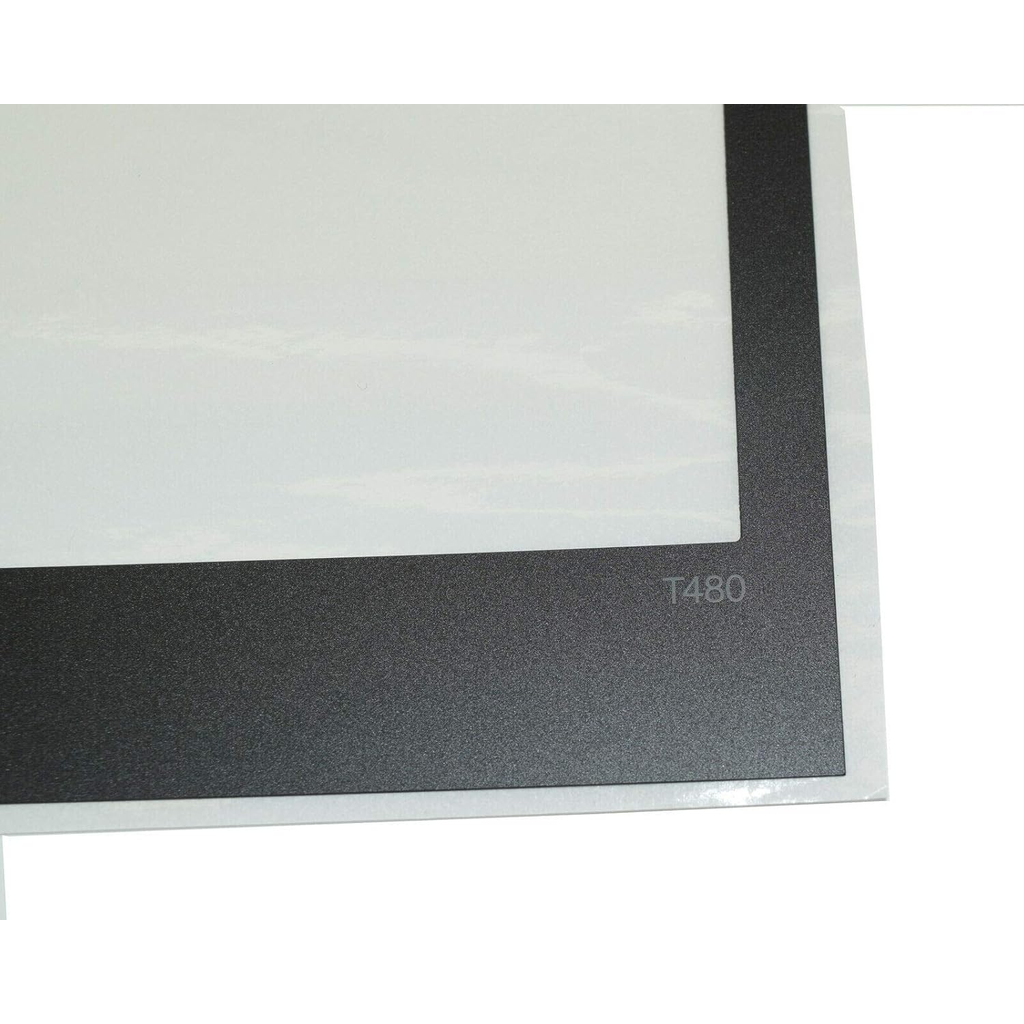

Replace a damaged or malfunctioning display on your Lenovo ThinkPad T480 with this complete LCD screen assembly. Includes the FHD IPS panel, LCD back cover, hinges, and all attached cables. Ready to install—no need to transfer components.

Genuine Lenovo screen assembly pulled from a working system. Grade A panel with excellent image quality and minimal to no cosmetic wear. All connectors attached and tested. Backed by our 1-year warranty.

Compatible With:

• Lenovo ThinkPad T480 (Type: 20L5, 20L6)
• Lenovo ThinkPad A485 (Type: 20MU, 20MV)

Specifications:

• Screen Size: 14.0" diagonal
• Resolution: 1920x1080 (Full HD)
• Panel Type: IPS (In-Plane Switching)
• Surface: Matte anti-glare
• Touchscreen: No (non-touch)
• Connector: 30-pin eDP
• Brightness: Standard (approximately 250-300 nits)

Part Numbers:

• DC02C00BC20 (LCD cable)
• DC02C00BC10 (LCD cable)
• DC02C00BC00 (LCD cable)
• 01YR501 (FRU - LCD cable)
• 00NY422 (FRU - LCD panel)
• 00NY673 (FRU - LCD panel)
• 00NY686 (FRU - LCD panel)

What's Included:

• 1x 14" FHD LCD Panel (Grade A)

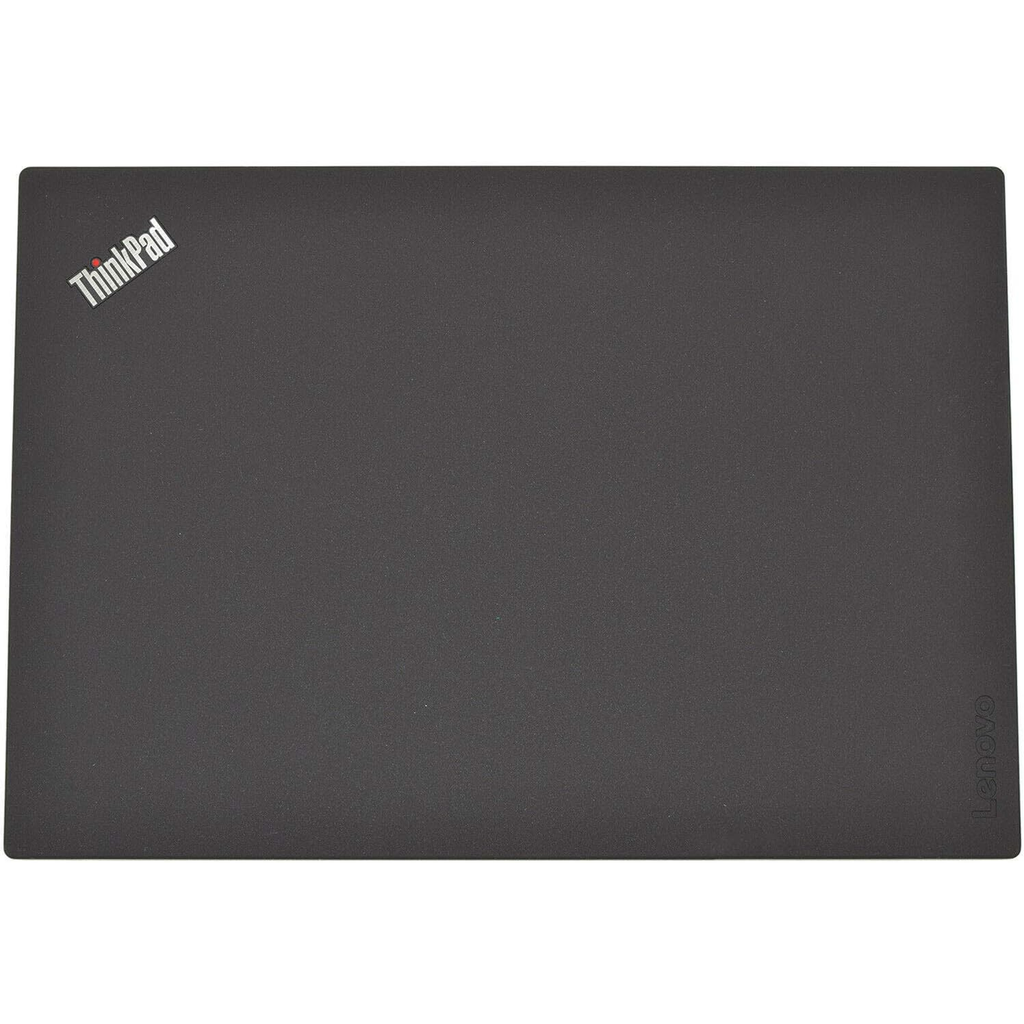

• 1x LCD Back Cover (top case lid)

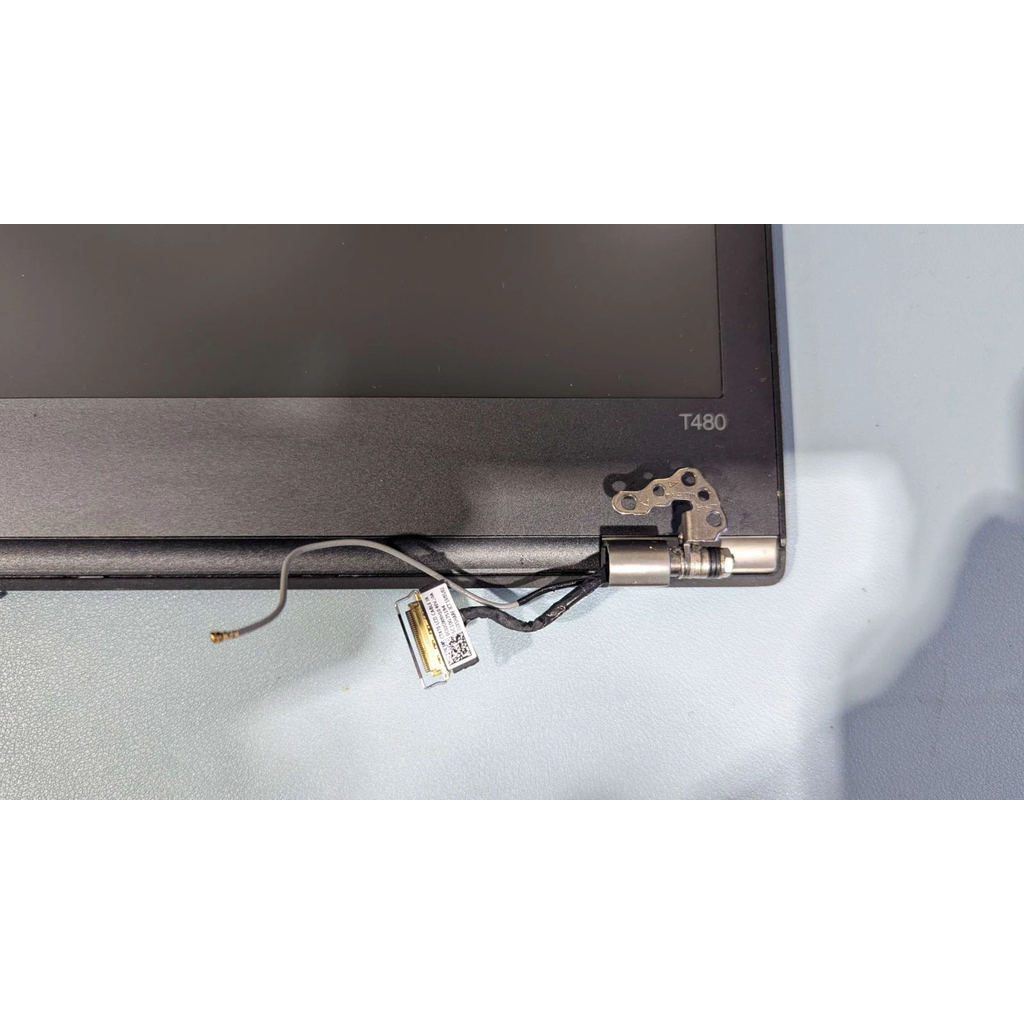

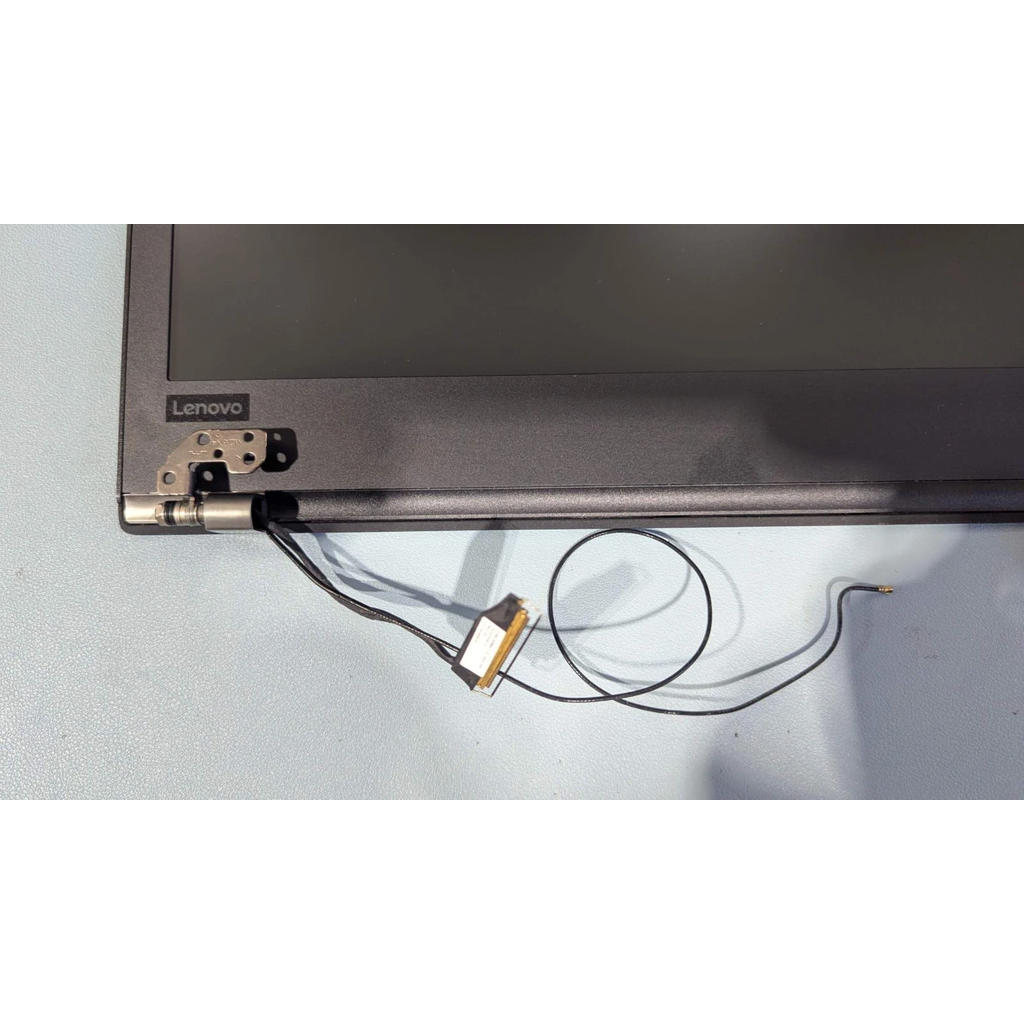

• 1x Left and Right Hinges
• 1x LCD Cable (attached)
• 1x WebCam (if originally equipped)
• 1x Wi-Fi Antenna Cables (routed through hinges)

Condition:

• Used - Grade A screen
• Pulled from working Lenovo ThinkPad T480
• LCD panel: Excellent condition, no dead pixels, no backlight bleed
• Back cover: Minimal wear, no cracks or deep scratches
• All cables and connectors tested and functional
• 1-year warranty included

Installation: LCD assembly replacement requires removing the bottom cover, disconnecting the battery, removing the keyboard and palmrest, disconnecting the LCD cable from the motherboard, removing hinge screws, and reversing the process with the new assembly. This is an intermediate to advanced repair. We recommend professional installation if you're not experienced with laptop repairs. Free installation available on parts purchased from Saddle Group at our Vaughan location.

Not Sure If This Part Fits Your Laptop? Send us your laptop model number and serial number and we'll confirm compatibility before you order. Contact us at support@saddlegroup.ca or call 289-963-9945.
