The Lenovo ThinkPad USB-C Dock (40A9) is an enterprise-grade docking station connecting your USB-C ThinkPad or compatible laptop to a full desktop workstation through a single USB-C cable. Drive dual displays, connect Gigabit Ethernet, USB peripherals, and charge your laptop at up to 90W — all in one connection.

Professionally inspected, tested, and certified ready for business use. Backed by our 1-year warranty.

Compatible With:

• Lenovo ThinkPad T470 / T480 / T490 / T495 / T14 Gen 1 / T14 Gen 2 / T14 Gen 3
• Lenovo ThinkPad X1 Carbon (5th Gen and newer)
• Lenovo ThinkPad X1 Yoga (2nd Gen and newer)
• Lenovo ThinkPad X270 / X280 / X390 / X395
• Lenovo ThinkPad L470 / L480 / L490 / L14
• Lenovo ThinkPad E480 / E490 / E495 / E14
• Most USB-C laptops supporting DisplayPort Alt Mode and USB Power Delivery (non-ThinkPad laptops: display output and charging work; ThinkPad-specific features like one-touch undock require Lenovo hardware)

Part Numbers:

• Model: Lenovo ThinkPad USB-C Dock Gen 2 (40A9)
• Lenovo P/N: 40A90090US / 40A90090UK / 40A9
• FRU: 02HJ107 / SD20Q13482

Specifications:

• Host Connection: USB-C cable (included, detachable)
• Power Delivery to Laptop: Up to 90W
• Display Support: Up to 2× 4K @ 30Hz via 2× DisplayPort 1.4, or 1× 4K @ 60Hz single display
• Ethernet: Gigabit RJ-45 (10/100/1000)

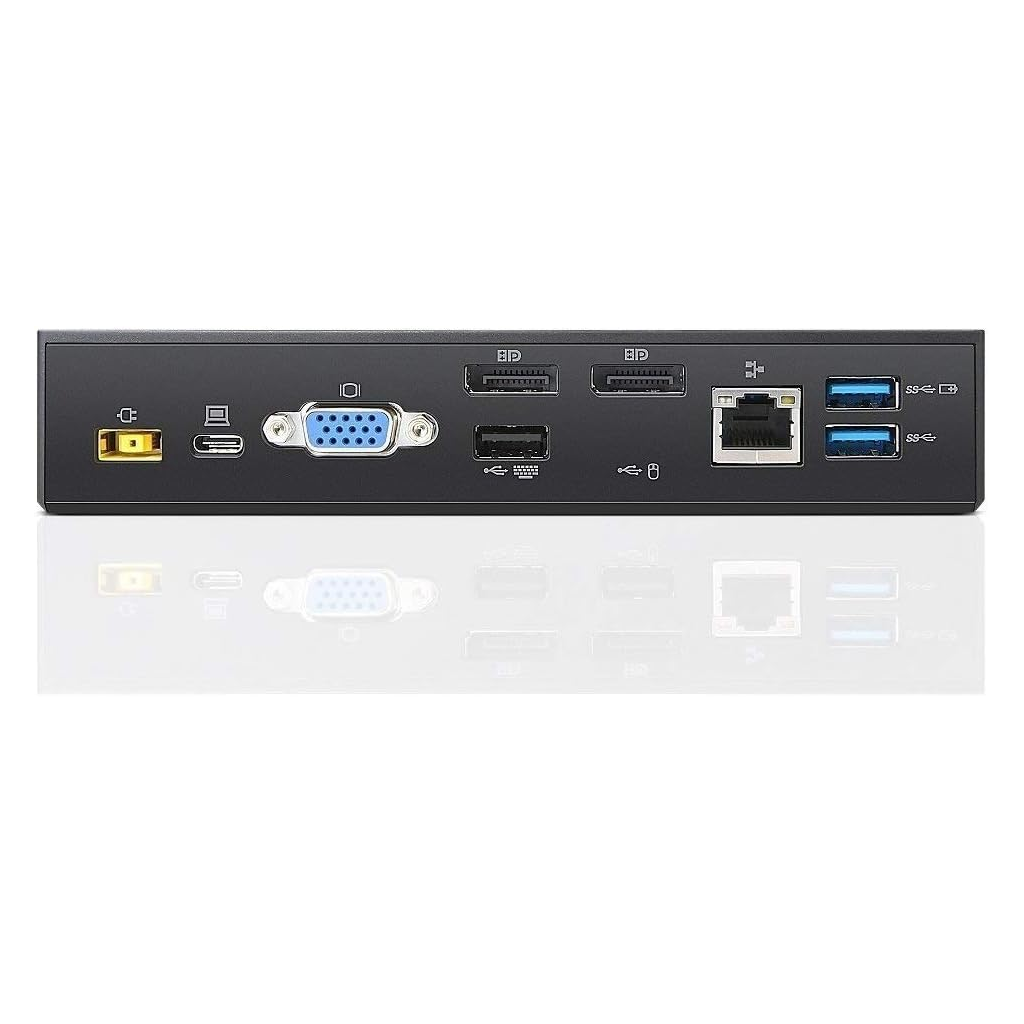

• Rear Ports:
  • 2× DisplayPort 1.4
  • 1× VGA
  • 1× USB-A (USB 2.0, keyboard/mouse)
  • 1× USB-A (USB 2.0)
  • 2× USB-A 3.1 Gen 1 (5 Gbps, one with charging)
  • 1× RJ-45 Gigabit Ethernet
  • 1× DC power input (slim tip)
  • 1× Kensington security lock slot
• Front Ports:
  • 1× USB-C 3.1 Gen 1 (data + 15W charging)
  • 1× USB-A 3.1 Gen 1 (5 Gbps)
  • 1× 3.5mm combo audio/mic jack
• Dimensions: 215 × 83 × 33 mm
• Weight: Approx. 0.49 kg (1.08 lbs)

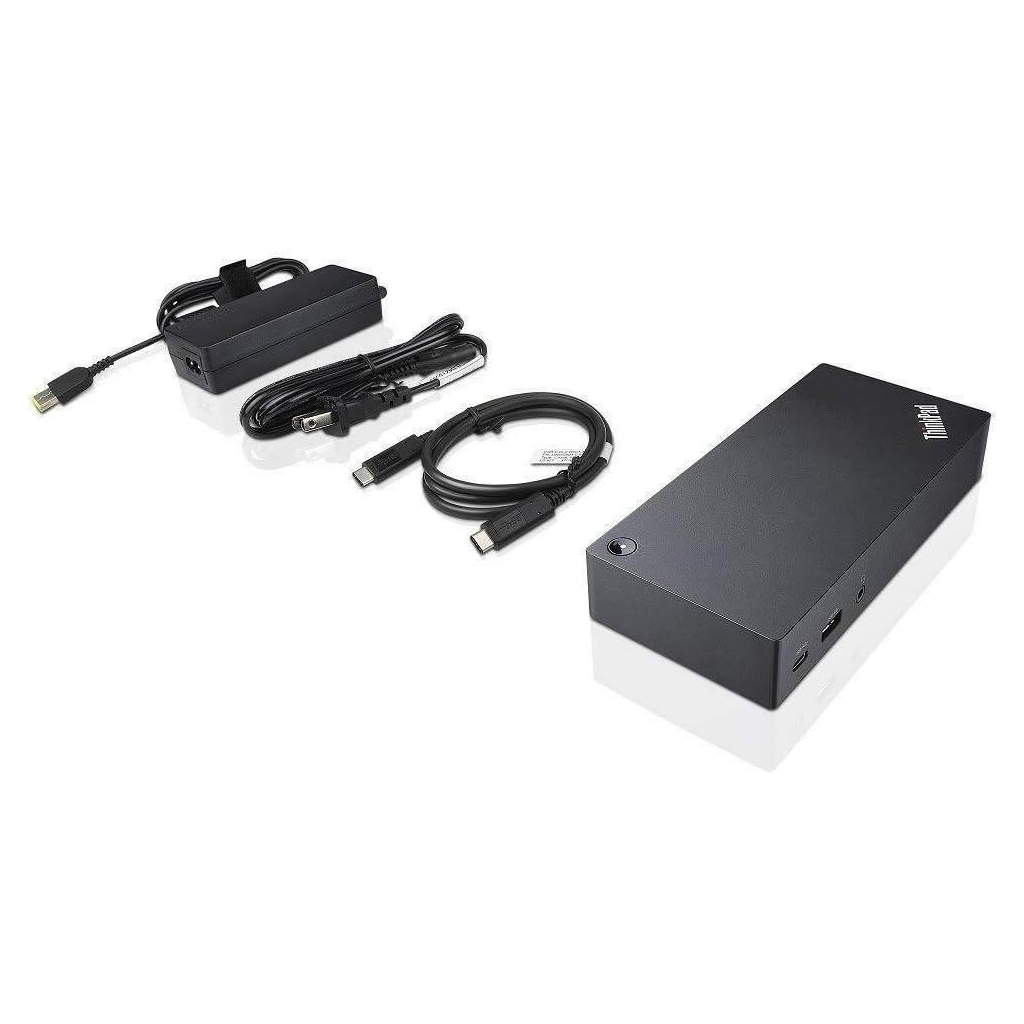

What's Included:

• 1× Lenovo ThinkPad USB-C Dock (40A9)
• 1× USB-C host cable
• 1× Lenovo 90W slim-tip power adapter
• 1× Power cable

NOT Included:

• Original box or packaging
• DisplayPort, HDMI, or VGA monitor cables

Condition - Grade A:

• Refurbished to Grade A cosmetic standard
• Minimal signs of previous use
• May show light scratches on housing consistent with office use
• All ports and components fully tested and functional
• Firmware updated to latest version
• Professionally cleaned inside and out
• 1-year warranty included

Performance & Use Cases: The ThinkPad USB-C Dock 40A9 is the classic single-cable ThinkPad desktop solution — plug in one USB-C cable and instantly connect two DisplayPort monitors, Gigabit Ethernet, keyboard, mouse, USB peripherals, and audio, while charging your laptop at up to 90W. The VGA port covers older conference room projectors and displays, making this a practical choice for offices that haven't fully migrated to DisplayPort. Ideal for ThinkPad users hot-desking across shared workstations, IT teams standardizing a dock across a mixed T-series fleet, and anyone replacing a failed 40A9 already deployed in their environment.

Why Choose the ThinkPad USB-C Dock 40A9? Lenovo's most widely deployed USB-C dock — found in enterprise environments worldwide. The detachable USB-C host cable means the dock survives even if the cable wears out. One-touch laptop power button on the dock works natively with compatible ThinkPad models. Slim-tip power adapter keeps the laptop charged even under load. Direct drop-in replacement for any 40A9 already in your fleet.

Warranty & Support: Every Saddle Group refurbished docking station includes a full 1-year warranty covering hardware defects. If something fails, we cover it. Local pickup available at our Vaughan location, or we ship across Canada with tracking.
